Quinntherm Cavity Board - All Sizes Cavity Wall Insulation
This product is a call to enquire product. Please call us on 020-3582-6399 for more information.
The option you have currently selected is a call to enquire option. Please call us on 020-3582-6399 for more information or select an alternative option.
Regular price
£75.35 £90.42
Now Only:
£75.35 £90.42
Sold out
Unit price

Mannok Cavity Board - All Sizes

SKU: qcav50

Est Delivery between and .

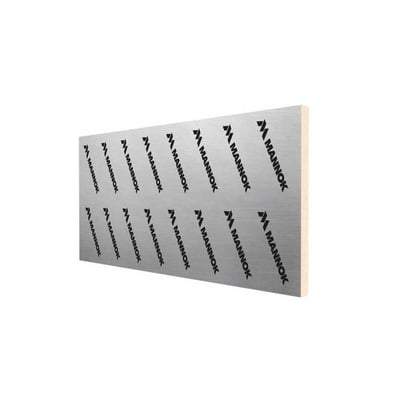

Mannok is a polyisocyanurate (PIR) insulation board ideally designed to be used in masonry walls with partial fill cavity insulation. These boards are crafted with a core of PIR foam connected on both sides to the composite facings. The built-in gas filled cells in Mannok provides high thermal performance and strength to them within the cavity.

The insulation used within the cavity greatly differs the thermal performance of the masonry walls. Moreover, the lower thermal conductivity of Mannok boards reduces the thickness of insulation required within the cavity to deliver the required thermal performance avoiding the requirement of having a cavity greater than 100mm wide in most cases.


  1. These boards does not readily absorb water and hence are suitable for use in damp environments
  2. Light, robust and easy to handle; it can be worked using a saw or sharp knife
  3. Durable and will perform for the service life of the building


  1. Board width x length: 450 mm x 1200 mm
  2. Board thickness: 50mm
  3. Board density: (26 - 32) kg/m³
  4. Area per pack: 4.86m²
  5. Edge Profiles available: Butt edged/ shiplap/ T&G
  6. Thermal conductivity*: 0.022 W/mK
  7. Water vapour resistivity: ≈ 40,000 MNs/gm
  8. Compressive Strength: > 120 kPa

Mannok QF boards are supplied in shrink-wrapped packs. Boards should be stored under cover and out of direct sunlight, keeping boards flat.

Also do not knock corners and edges while handling Mannok. Cut Mannok QF with a fine tooth saw or quality trimming knife.

The Mannok boards are highly durable and perform well for the service life of the buildings.

Length 1200mm
Width 450mm
Thermal Conductivity 0.022 W/mK
Brand Mannok
Material Type Polyiso
