Galvanised Joist Hanger - All Sizes Building Materials
Galvanised Joist Hanger - All Sizes Building Materials
  • Load image into Gallery viewer, Galvanised Joist Hanger - All Sizes Building Materials
  • Load image into Gallery viewer, Galvanised Joist Hanger - All Sizes Building Materials
FORGEFIX

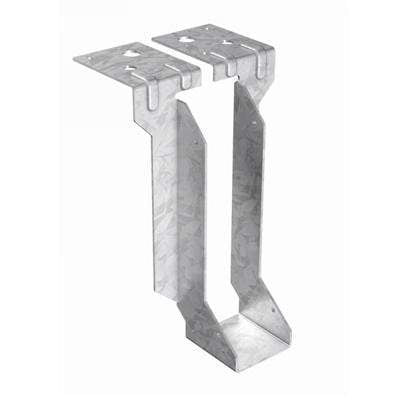

Galvanised Joist Hanger - All Sizes

The option you have currently selected is a call to enquire option. Please call us on 020-3582-6399 for more information or select an alternative option.
Regular price
£55.33 £66.40
Was:
£0.00
Now Only:
£55.33 £66.40
Sold out
Unit price
per
+
✔ This product is eligible for our buy now & pay later scheme - available at checkout (read more)
FORGEFIX

Galvanised Joist Hanger - All Sizes

Product Code: BPCSMHS47X100
Features/Benefits

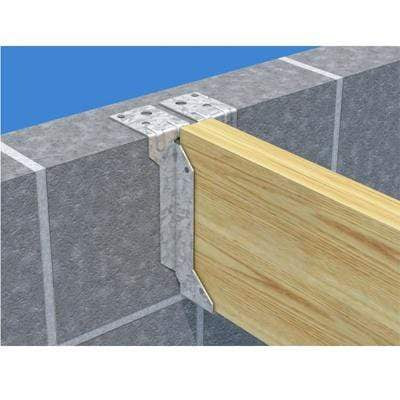

  • A comprehensive range of single piece non-welded timber to masonry hangers, designed to support timber joists from brick or block walls.
  • The standard hanger is designed for building into brickwork or blockwork.
  • Hangers 150mm deep and over are manufactured 10mm less to allow for notching and regularisation of timber joists.
  • All hangers feature 75mm bearing surface and pre-punched side gussets to allow nail fixing into timber joists with 30 x 3.75mm sherardised square twist nails.
  • Wide top flange design offers increased loading capacity on masonry with a minimum crushing strength of 3.5N/mm2 and above.
  • As standard all hangers are manufactured from 2.0mm thick pre-galvanised steel to BS EN 10346:2009 + G275, independently tested and compliant with BS EN 845-1 and to the requirements of BS5268.
Brand Forgefix
Finish Galvanised
Product type Joist Hanger

For information on delivery costs and more click here.


Description

Features/Benefits
  • A comprehensive range of single piece non-welded timber to masonry hangers, designed to support timber joists from brick or block walls.
  • The standard hanger is designed for building into brickwork or blockwork.
  • Hangers 150mm deep and over are manufactured 10mm less to allow for notching and regularisation of timber joists.
  • All hangers feature 75mm bearing surface and pre-punched side gussets to allow nail fixing into timber joists with 30 x 3.75mm sherardised square twist nails.
  • Wide top flange design offers increased loading capacity on masonry with a minimum crushing strength of 3.5N/mm2 and above.
  • As standard all hangers are manufactured from 2.0mm thick pre-galvanised steel to BS EN 10346:2009 + G275, independently tested and compliant with BS EN 845-1 and to the requirements of BS5268.


Technical Specifications

Brand Forgefix
Finish Galvanised
Product type Joist Hanger
