Frametite Air Barrier 1.5m x 50m Building Materials
PROCTOR

Frametite Air Barrier 1.5m x 50m

Regular price
£84.09 £100.91
Was:
£0.00
Now Only:
£84.09 £100.91
Sold out
Unit price
per
✔ This product is eligible for our buy now & pay later scheme - available at checkout (read more)
PROCTOR

Frametite Air Barrier 1.5m x 50m

Product Code: Frametite-1.5m x 50m
Note - Estimated Delivery Time Of 2-4 Weeks

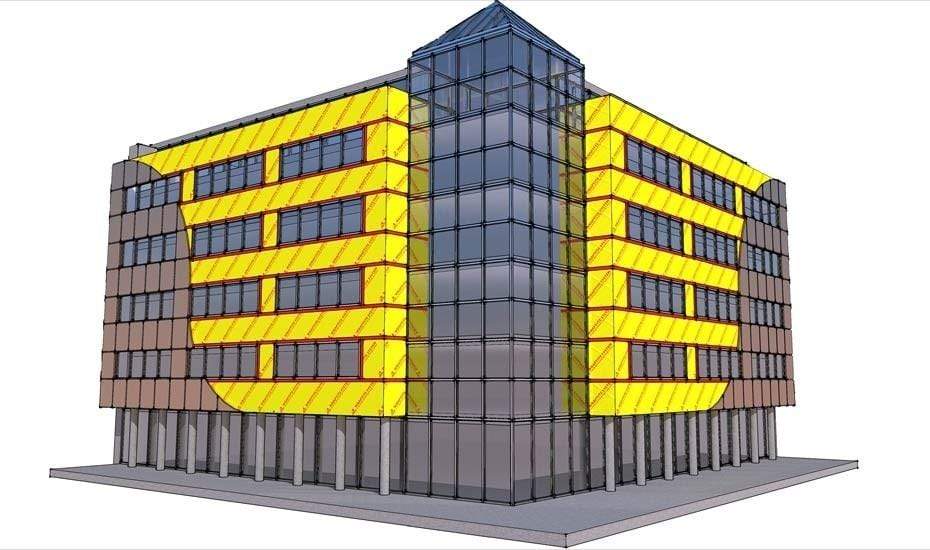

Frametite is a low-resistance vapour permeable air barrier for walls. It is durable, flexible and lightweight, allowing for easy installation, and offers temporary protection against wind-driven rain, snow and dust.

The Frametite system offers the ideal option for a vapour permeable air barrier.

Used together, the components of the Frametite system provide a simplified and robust method of achieving low air leakage rates, particularly when installed on site, as is typical with large scale rainscreen construction, or when sealing junctions between prefabricated building components. By reducing the likelihood of failures to meet designed airtightness levels, the Frametite system helps ensure “as-designed” performance is achieved, helping to narrow the ‘performance gap’ between as-designed and actual energy performance.

Key Benefits
• Excellent resistance to water penetration
• Excellent water vapour transmission properties
• BBA - certificate number 14/5153
• Thermally Efficient
• Wraptite Tape used in conjunction
• Simple & robust two component system
• Airtight yet vapour permeable
• Forms an external airtightness barrier
• Resists punctures and tears during construction
• Assists in achieving an excellent airtightness result

Material Properties

Property Test Method Result
Roll Size 1.5m x 50m
Mass Per Unit Area EN 1849-2 92g/m2<
Reaction to Fire EN 13501-1 Class D-d2
Water Vapour Resistance SD EN 12572 0.029m
Water Penetration EN 13859-2:2010 Class W1 (before & after ageing)
Tensile Strength EN 12311-1 MD 230N CD 125N
Elongation EN 12311-1 MD 65% CD 70%
Tear Resistance EN 12310-1 MD 75N / CD 80N
Flexibility at Low Temperature EN 1109 No cracking at minus 40C
Air Permeability EN 12114 0.01m3/m2/hr @ 50Pa



























































Property Test Method Result
Roll Size 1.5m x 50m
Mass Per Unit Area EN 1849-2 92g/m2<
Reaction to Fire EN 13501-1 Class D-d2
Water Vapour Resistance SD EN 12572 0.029m
Water Penetration EN 13859-2:2010 Class W1 (before & after ageing)
Tensile Strength EN 12311-1 MD 230N CD 125N
Elongation EN 12311-1 MD 65% CD 70%
Tear Resistance EN 12310-1 MD 75N / CD 80N
Flexibility at Low Temperature EN 1109 No cracking at minus 40C
Air Permeability EN 12114 0.01m3/m2/hr @ 50Pa
Brand Proctor
Length 50m
Width 1.5m
